DTC P0172: Rear Bank (Bank 1) Fuel System Too Rich: Notes

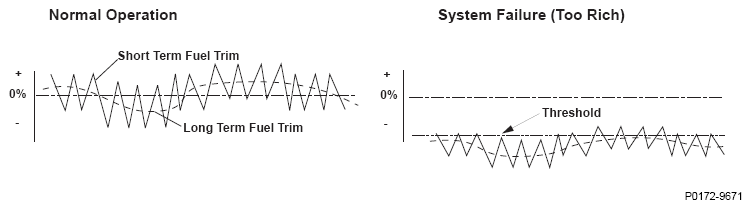

Fig 1: Fuel System Characteristics Curve (Too Rich)

G08568784

Courtesy of AMERICAN HONDA MOTOR CO., INC.
