Parking and Back-Up Sensor Switch Test/Replacement

Remove the driver's dashboard lower cover (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
Disconnect the 5P connector (A) from the front parking sensor switch (B), then remove the switch from the switch panel.

Fig 1: Identifying Front Parking Sensor Switch And 5P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

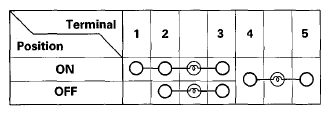

Fig 2: Checking Continuity Between Terminals In Switch Position According To Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the illumination bulbs (A) or the switch.

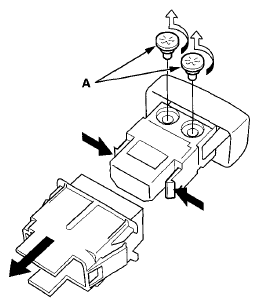

Fig 3: Replacing Bulbs Or Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
