Component Location Index

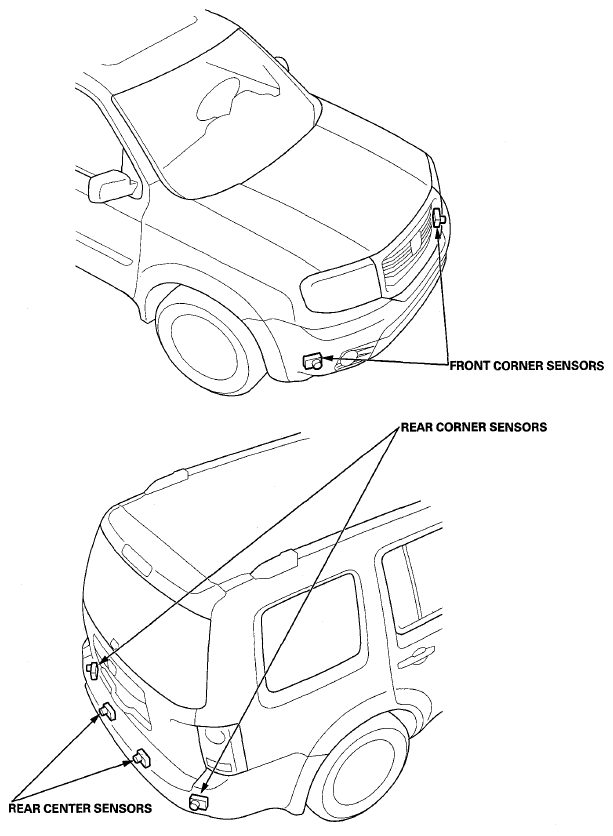

Fig 1: Identifying Parking And Back-Up Sensor System Components Location (1 Of 2)
G08089298Courtesy of AMERICAN HONDA MOTOR CO., INC.

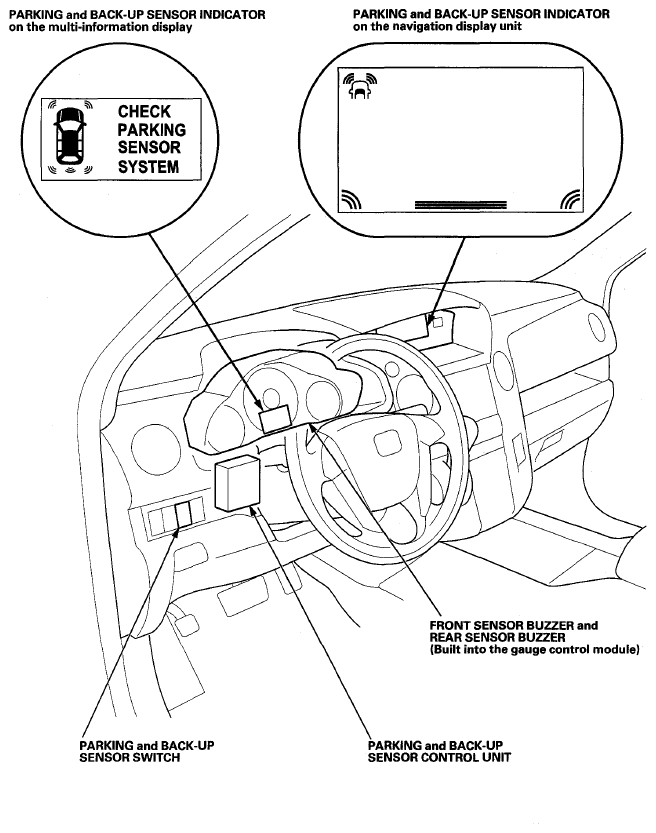

Fig 2: Identifying Parking And Back-Up Sensor System Components Location (2 Of 2)
G08089299Courtesy of AMERICAN HONDA MOTOR CO., INC.
