Tailgate Latch Switch Test

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate.
  2. Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  3. Disconnect the 2P connector (A) from the tailgate latch assembly (B).

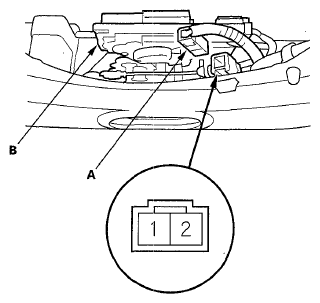

    Fig 1: Identifying Tailgate Latch Switch & 2P Connector
    G05960046Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Check for continuity between terminals No. 1 and No. 2.
    • There should be continuity with the tailgate open.
    • There should be no continuity with the tailgate closed.
  5. If the continuity is not as specified, replace the tailgate latch assembly.
