Without Navigation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the individual map light switch OFF.
  2. Carefully pry the lens (A) off with a small screwdriver.

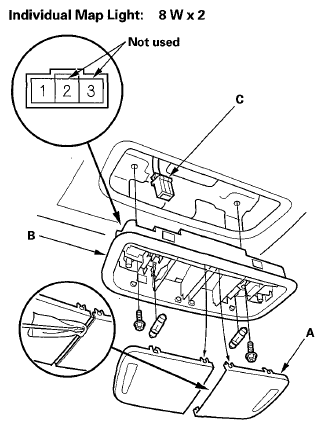

    Fig 1: Identifying Individual Map Light & Screws (Without Navigation)
    G05960043Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screws, then remove the individual map light (B).
  4. Disconnect the connector (C) from the individual map light.
  5. Check for continuity between the terminals.
    • There should be continuity between terminal No. 1 and the ground terminal with the switch in the ON position.
    • There should be no continuity between terminal No. 1 and the ground terminal with the switch in the OFF position.
  6. If the continuity is not as specified, check the bulb. If the bulb is OK, replace the individual map light.
  7. Install the light in the reverse order of removal.
