Tailgate Latch Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the tailgate or the related parts.
If the tailgate latch does not unlock by using the keyless entry transmitter or unlocking the driver's door lock, remove the maintenance lid (A) from the tailgate lower trim panel. Unlock the tailgate latch by turning the lock lever counterclockwise as shown. Open the tailgate by pulling the tailgate handle.

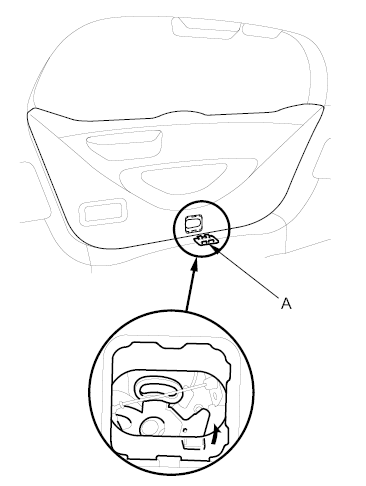

Fig 1: Identifying Tailgate Lower Trim Panel Maintenance Lid
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Disconnect the tailgate opener cable (A) from the tailgate latch (B). Take care not to kink the cable.

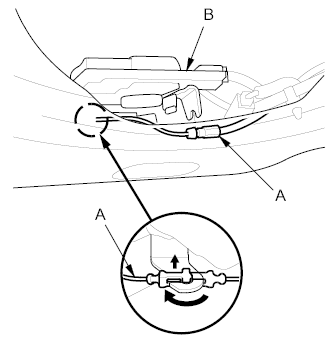

Fig 2: Identifying Tailgate Opener Cable & Latch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
For some models: Disconnect the cylinder rod from the tailgate lock cylinder (see step 2)
Disconnect the tailgate latch actuator connector (A) and the tailgate lock switch connector (B), and detach the clip (C), then remove the tailgate latch.

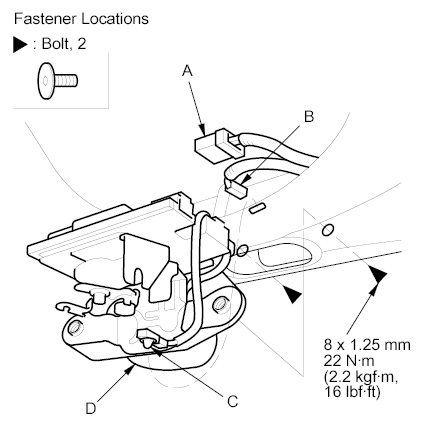

Fig 3: Tailgate Latch Actuator Connector, Lock Switch Connector & Clip With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts, then pull out the tailgate latch (D) from the tailgate.
Install the tailgate latch in the reverse order of removal, and note these items:
- Make sure the connectors are plugged in properly and the handle cable is connected properly.
- Make sure the tailgate opens properly and locks securely.
