Washer Tube Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
Remove the washer nozzles and clips, then remove the tubes.

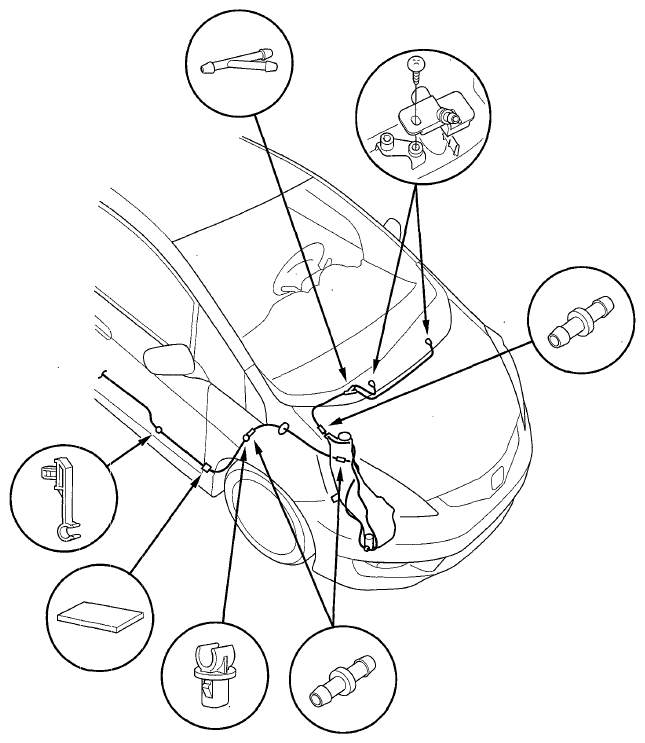

Fig 1: Identifying Washer Nozzles & Clips (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

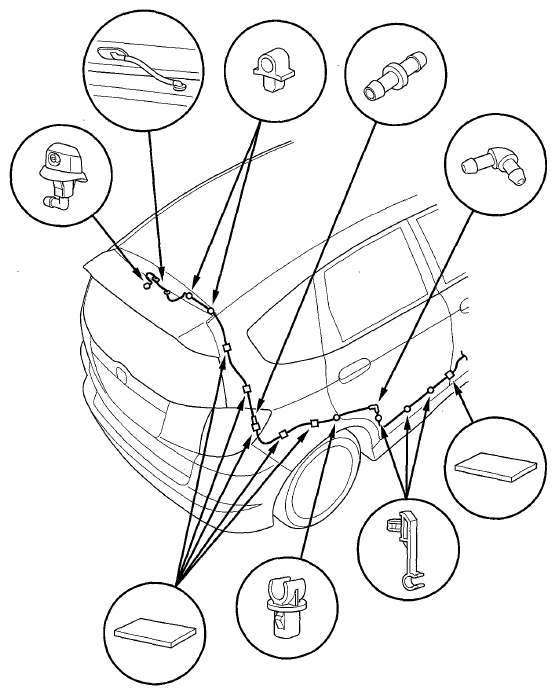

Fig 2: Identifying Washer Nozzles & Clips (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal. Take care not to pinch the washer tubes. Check the washer operation.
