Sunlight Sensor Replacement

WARNING: This page is about a different car, the 2011 Honda CR-V, 2010 Honda CR-V, 2009 Honda CR-V, 2008 Honda CR-V, and 2007 Honda CR-V. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center upper dashboard panel (see CENTER UPPER DASHBOARD PANEL REMOVAL/INSTALLATION ).
  2. Push out the sunlight sensor (A) from behind the dashboard. Disconnect the 2P connector (B) from the sunlight sensor. Be careful not to damage the sensor or the dashboard.

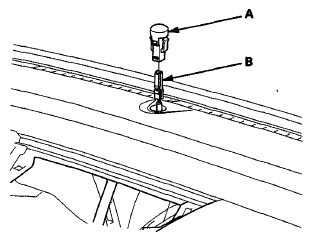

    Fig 1: Identifying Sunlight Sensor And 2P Connector
    G06612055Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the sensor in the reverse order of removal.
