Outside Air Temperature Sensor Replacement

WARNING: This page is about a different car, the 2011 Honda CR-V, 2010 Honda CR-V, 2009 Honda CR-V, 2008 Honda CR-V, and 2007 Honda CR-V. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift the tab (A) to release the lock, then remove the outside air temperature sensor (B) from the under of the front bumper. Disconnect the 2P connector (C) from the outside air temperature sensor.

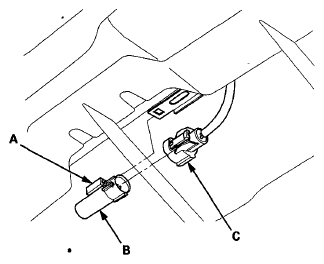

    Fig 1: Identifying Outside Air Temperature Sensor, 2P Connector And Tab
    G06612053Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the sensor in the reverse order of removal.
