In-car Temperature Sensor Replacement

WARNING: This page is about a different car, the 2011 Honda CR-V, 2010 Honda CR-V, 2009 Honda CR-V, 2008 Honda CR-V, and 2007 Honda CR-V. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push out the in-car temperature sensor (A) from behind the dashboard. Remove the air hose (B) from the in-car temperature sensor, then disconnect the 2P connector (C).

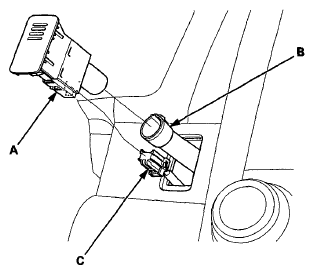

    Fig 1: Identifying In-Car Temperature Sensor, Air Hose And 2P Connector
    G06612050Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
