Monitor Check: Notes

Overview of the navigation display.

These screens allow you to troubleshoot the navigation display. Select the item you want to troubleshoot, and follow the diagnostic instructions.

• RGB Color
• Gray Tone
• White Raster
• Black Raster
• Color Pattern
• Monitor Adjustment
• Touch Panel Check
• Touch Panel Calibration

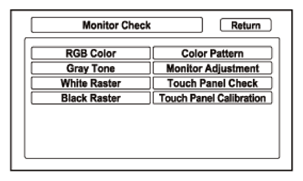

  Fig 1: Display - Monitor Check Screen

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
