Circuit Diagram

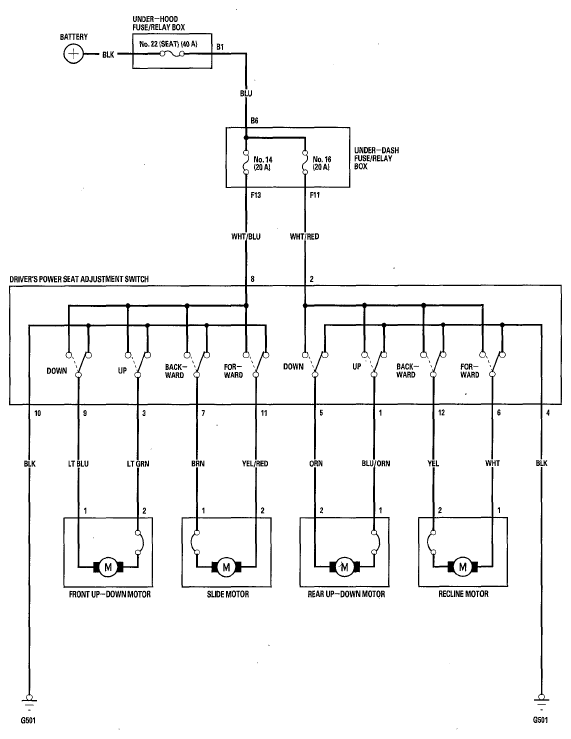

Fig 1: Power Seat Circuit Diagram

G05968880

Courtesy of AMERICAN HONDA MOTOR CO., INC.
