Automatic Transmission - 5-Speed
>>
A/T Interlock System
>>
Circuit Diagram
Circuit Diagram

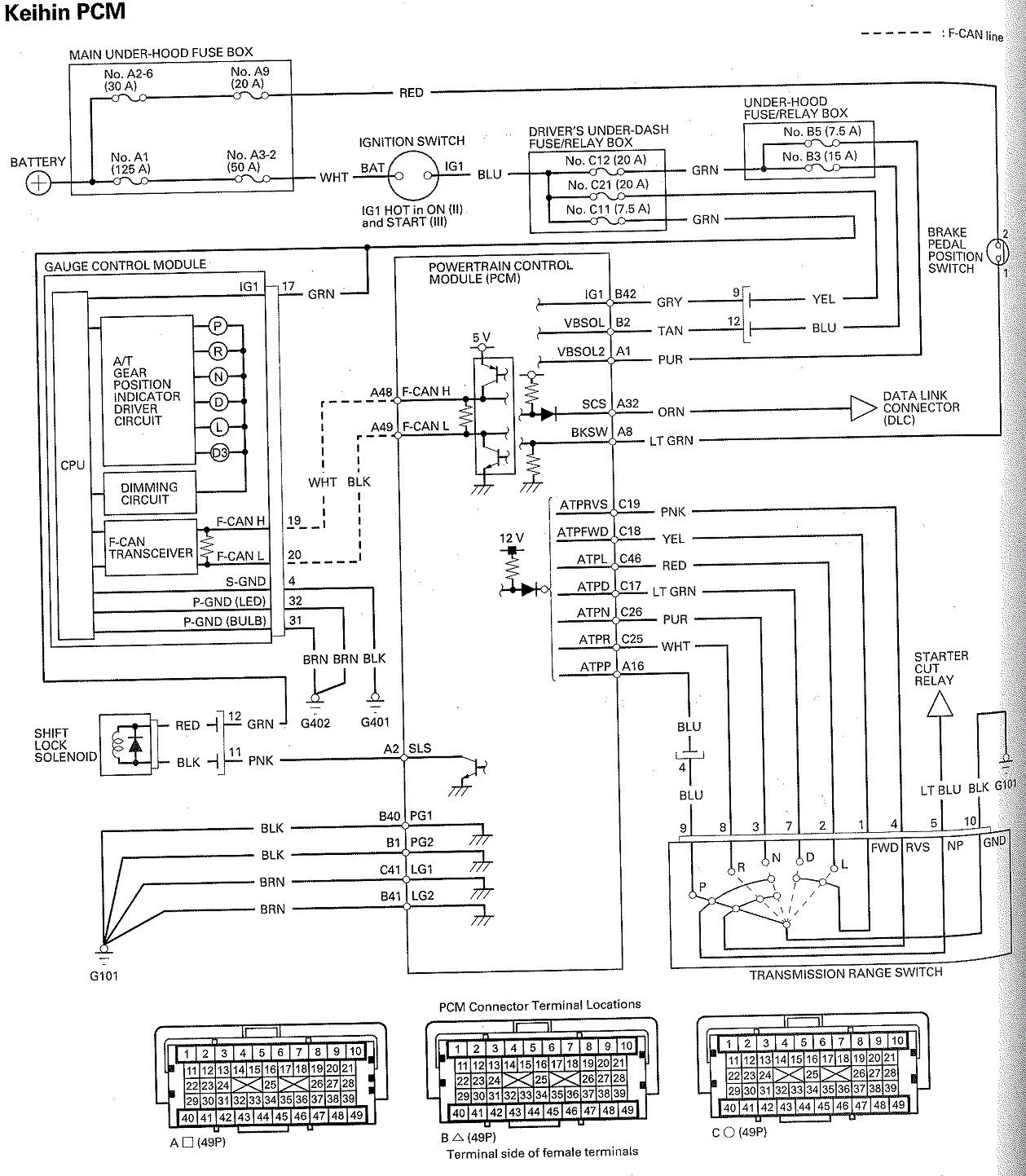

Fig 1: A/T Interlock System - Circuit Diagram (Keihin PCM)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

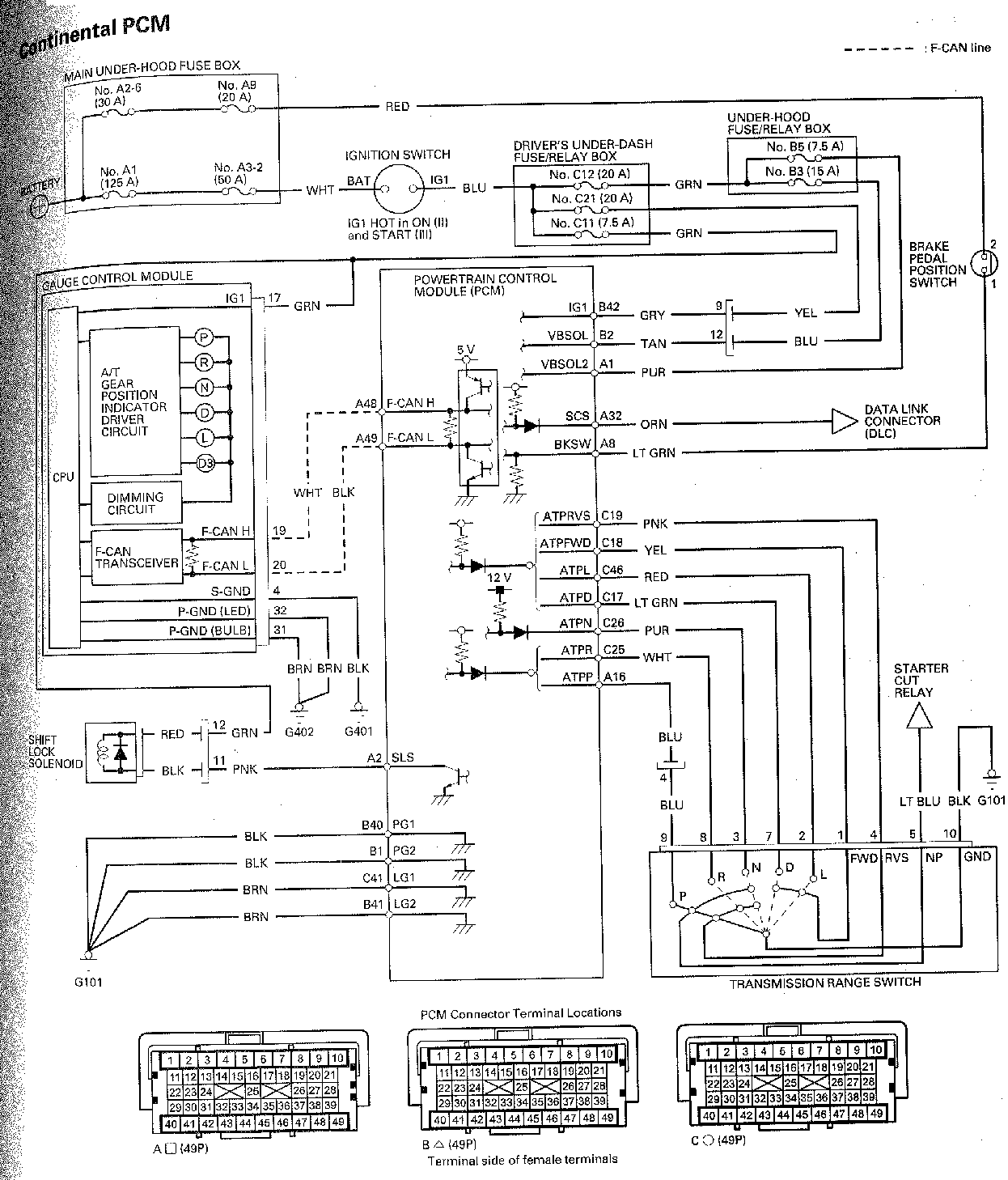

Fig 2: A/T Interlock System - Circuit Diagram (Continental PCM)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
