Rear Door

  1. Remove the left or right rear door panel (see REAR DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 10P connector (A) from the door latch (B).
    NOTE: The illustration shows the left rear door.

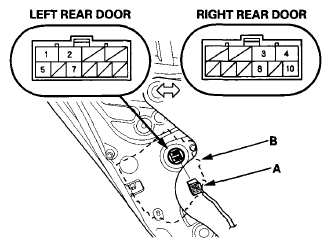

    Fig 1: Identifying Left/Right Rear Door Latch 10P Connector Terminals
    G08094616Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals.

    There should be continuity between terminals No. 7 [No. 8] and No. 5 [No. 10] when the door lock knob switch is in the UNLOCK position and no continuity when the switch is in the LOCK position.

    []: Right rear door

  4. If the continuity is not as specified, the switch is faulty; replace the rear door latch (see REAR DOOR LATCH REPLACEMENT ).
