HANDSFREELINK System
>>
Circuit Diagram
>>
With navigation
With navigation

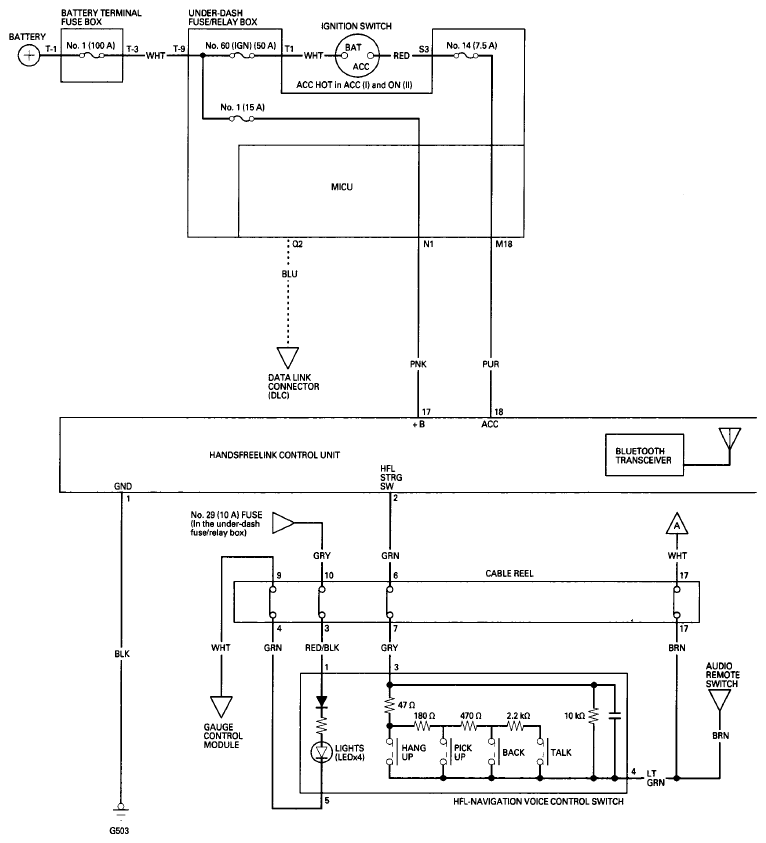

Fig 1: HandsFreeLink System Circuit Diagram - With Navigation (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

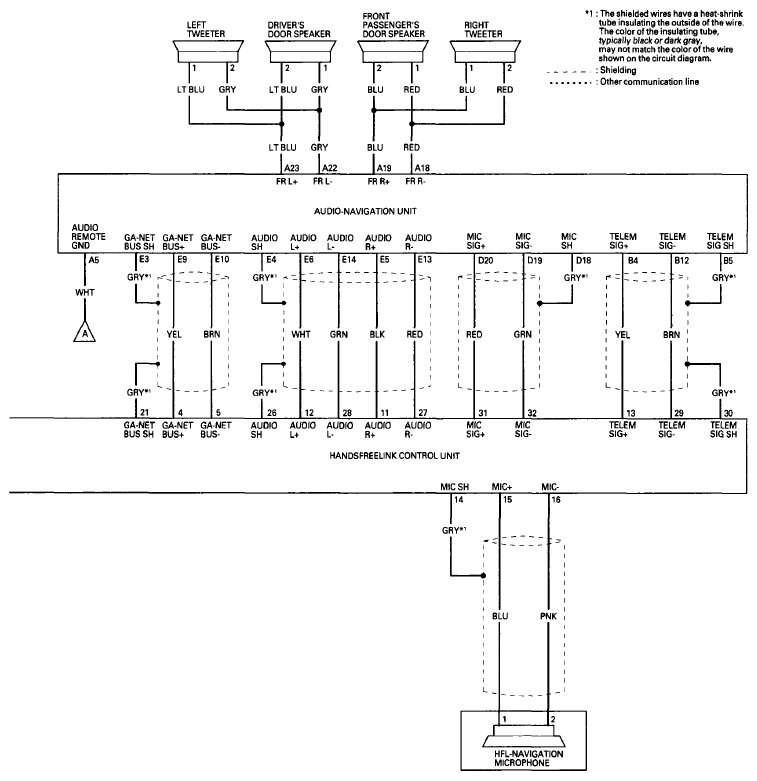

Fig 2: HandsFreeLink System Circuit Diagram - With Navigation (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
