Selector Control Shaft Oil Seal Replacement

Special Tools Required

• Driver Handle, 15 x 135L 07749-0010000
• Oil Seal Driver Attachment 07947-ZV00100

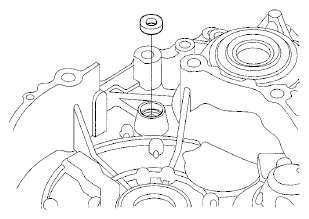

1. Remove the oil seal from the torque converter housing.
   Fig 1: Removing Oil Seal From Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

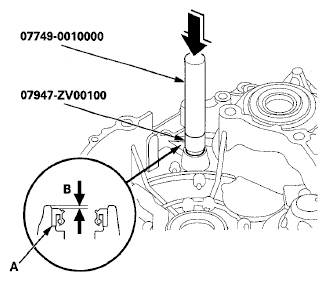

2. Install the new oil seal (A) in the torque converter housing to a depth (B) of 0.5-1.5 mm (0.02-0.06 in) below the housing surface using the driver handle and the oil seal driver attachment.
   Fig 2: Installing Oil Seal In Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
