Intermediate Shaft Reassembly
>>
Exploded View
Exploded View

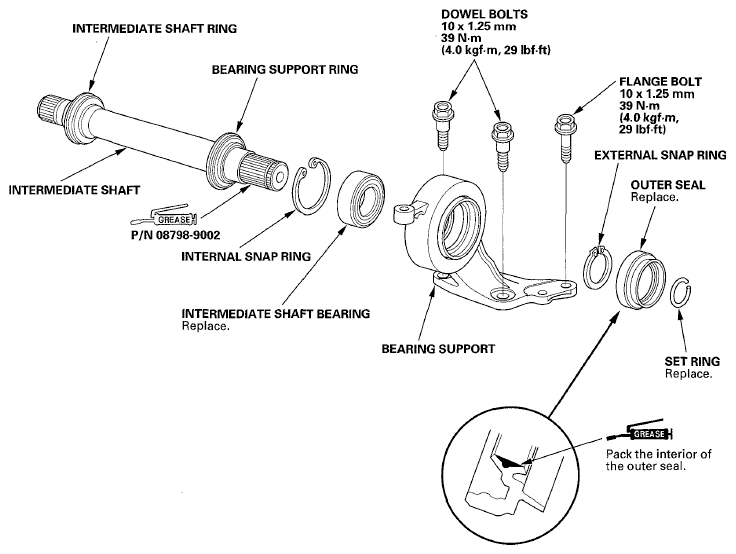

Fig 1: Identifying Intermediate Shaft Reassembly Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
