Spark Plug Inspection: Installation

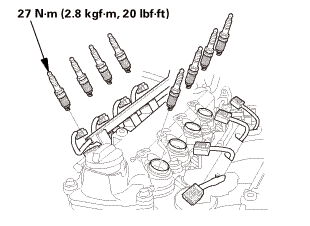

  1. Spark Plug
    GHH128837Courtesy of HONDA, U.S.A., INC.
    		 1. Screw the plugs into the cylinder head, finger-tight.

    2. Tighten the plugs to the specified torque.
    Specified Torque:
    27 N.m (2.8 kgf.m, 20 lbf.ft)

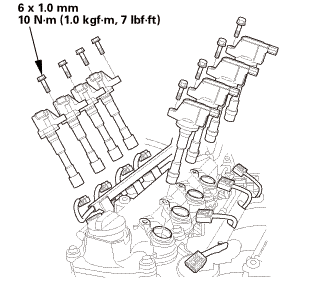

  2. Ignition Coil
    GHH128838Courtesy of HONDA, U.S.A., INC.
    		 1. Install the ignition coils.

    2. Connect the connectors.

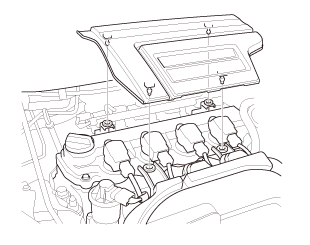

  3. Engine Cover
    GHH128839Courtesy of HONDA, U.S.A., INC.
    		 1. Install the engine cover.
