Power Mirror Actuator Replacement

  1. Remove the mirror holder (see MIRROR HOLDER REPLACEMENT ).
  2. Remove the three screws and the actuator (A).

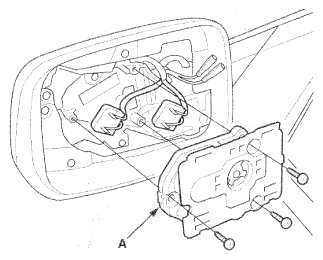

    Fig 1: Identifying Power Mirror Actuator
    G06954177Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the removed parts in the reverse order of removal.
