Gauge Control Module (View 295)
Gauge Control Module (View 295)
GRY
Left Side of Dash
On Dashboard Wire Harness

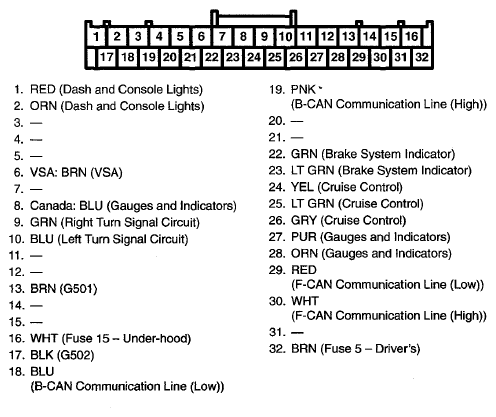

Fig 1: Gauge Control Module Connector Terminal (View 295)
