ECM/PCM (View 308)

Left Front of Engine Compartment
Connector A
- BLK/WHT
- On Left Engine Compartment Wire Harness

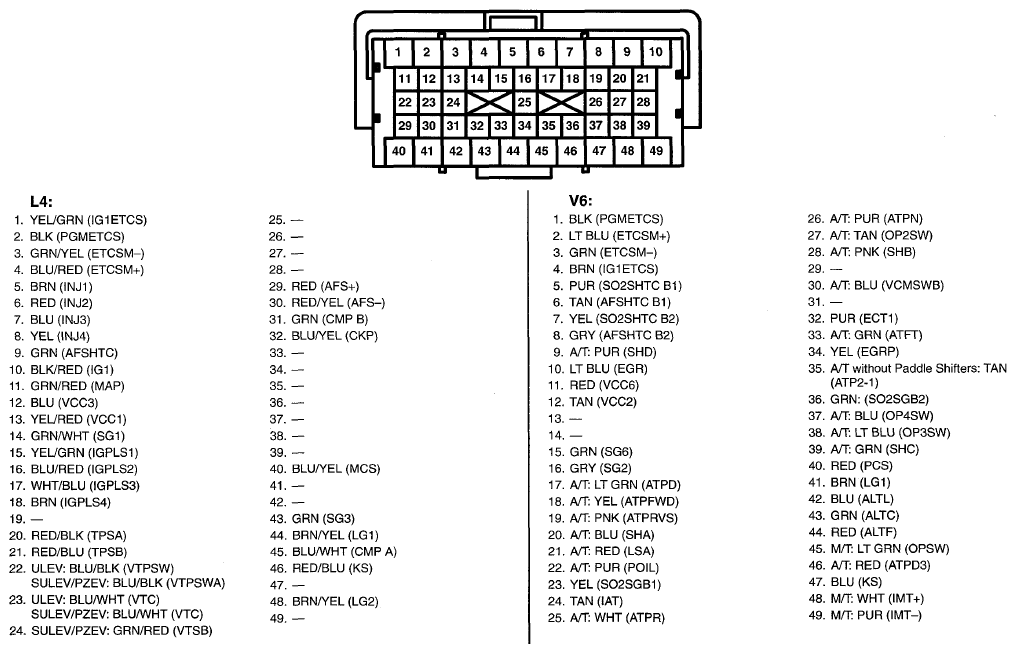

  Fig 1: ECM/PCM Connector A Terminal (View 308)
Connector B
- BLK/GRY
- On Engine Wire Harness

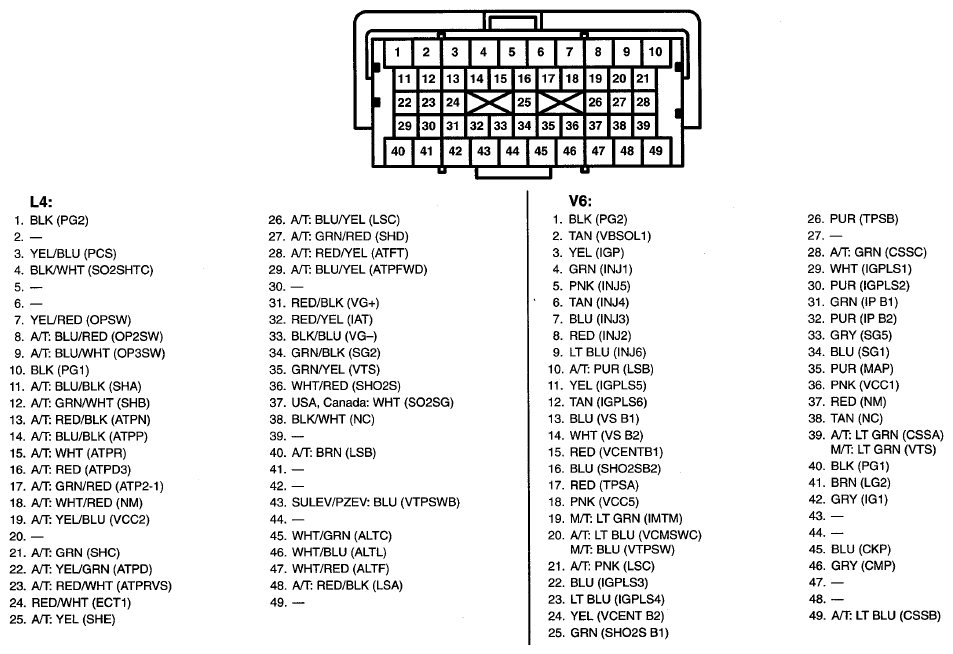

  Fig 2: ECM/PCM Connector B Terminal (View 308)
Connector C
- BLK/GRN
- On Engine Wire Harness

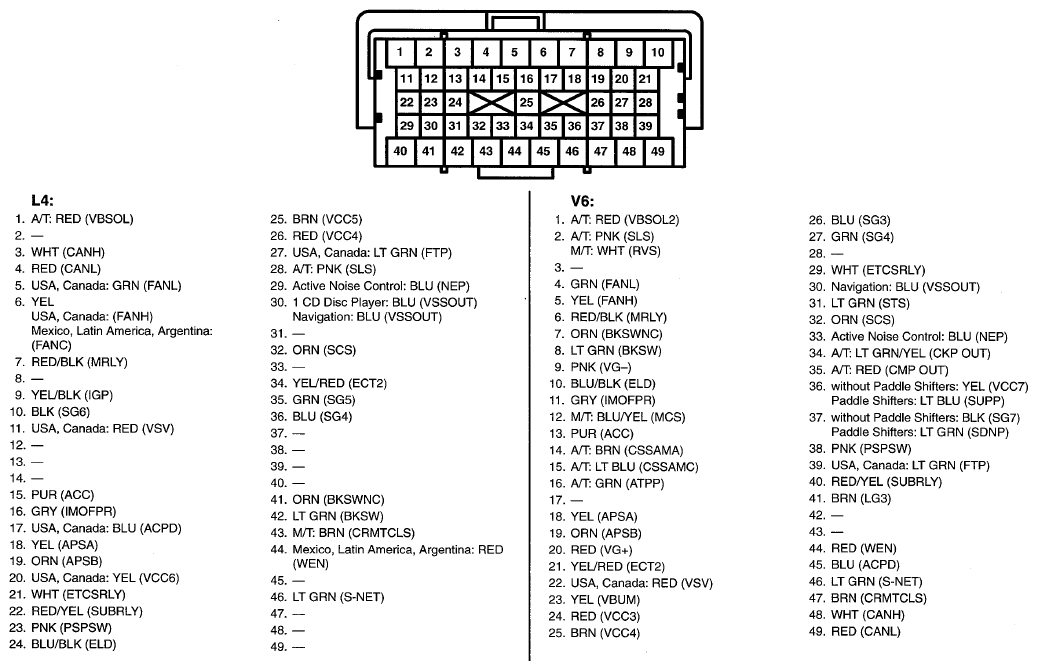

  Fig 3: ECM/PCM Connector C Terminal (View 308)
