Voice Control Switch Test

WARNING: This page is about a different variant/trim than selected.

Remove the voice control switch (see VOICE CONTROL SWITCH REPLACEMENT ).

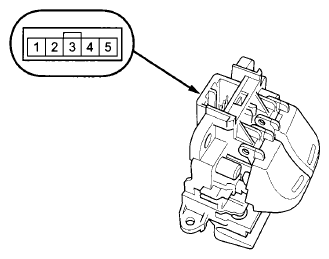

Fig 1: Identifying Voice Control Switch Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Measure the resistance between terminals No. 2 and No. 4 in each switch position according to the table.

RESISTANCE REFERENCE CHART

Position	Resistance
No button pressed	About 10 kΩ
Navigation TALK button pressed	About 2.2 kΩ
Navigation BACK button pressed	About 652 Ω

If the resistance is not as specified, replace the voice control switch (see VOICE CONTROL SWITCH REPLACEMENT ).
