Rear Camera

WARNING: This page is about a different variant/trim than selected.

This diagnosis tests whether rearview camera is connected to the navigation display unit.
If the connection is NG, the ADPT line between the rearview camera and the navigation display unit may have a failure. Check for hard error codes, see HOW TO CHECK ERROR HISTORY (NAVIGATION DTCS) .

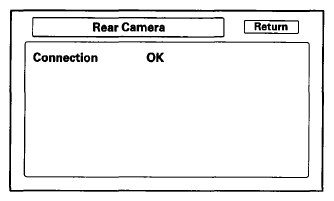

Fig 1: Screen Display - Checking Rear Camera
Courtesy of AMERICAN HONDA MOTOR CO., INC.
