Unit Check (Quick Check): Radio

WARNING: This page is about a different variant/trim than selected.

If the Connection is NG, first check for loose terminals at the navigation unit and the audio unit connections. Next check for an open or short in the GA-Net Bus line between the navigation unit and the audio unit. If the wire has an open or short, replace the affected shielded harness.

NOTE: If the XM link appears red, but the radio link appears green in the navigation System Links, refer to audio system SYMPTOM TROUBLESHOOTING .

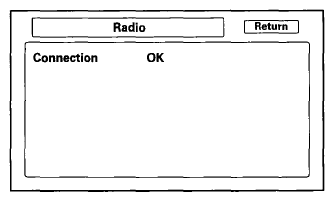

Fig 1: Screen Display - Checking Radio

Courtesy of AMERICAN HONDA MOTOR CO., INC.
