Unit Check (Quick Check): HFL

This diagnosis tests the 4 wire communication bus line between the HandsFreeLink control unit and the navigation unit.

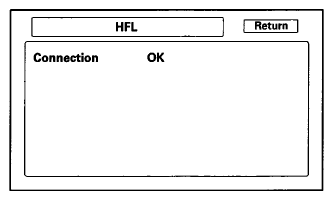

Fig 1: Screen Display - Checking Wire Communication Bus Line

Courtesy of AMERICAN HONDA MOTOR CO., INC.
