Section 53 (Navigation System (V6))
>>
System Description
>>
Overview
>>
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

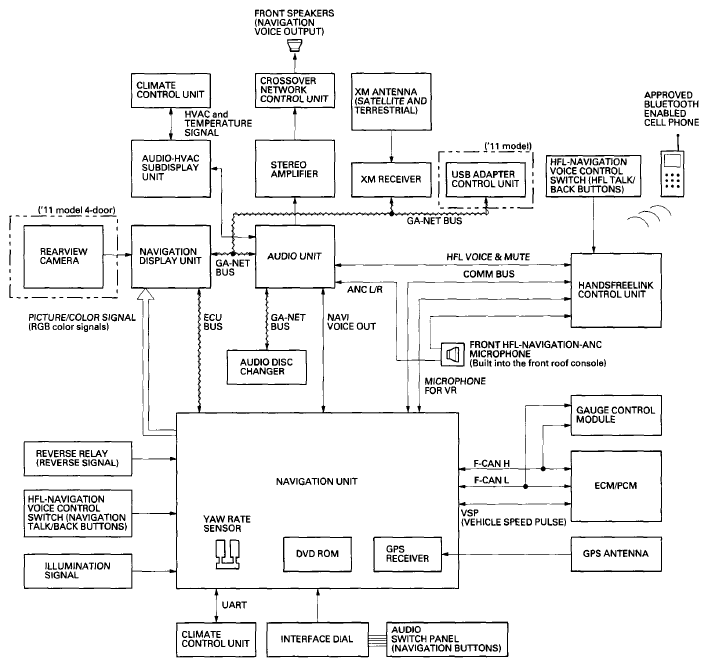

Fig 1: Navigation System Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
