Vehicle Speed Pulse
WARNING: This page is about a different variant/trim than selected.

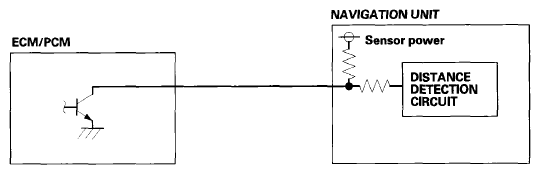

The vehicle speed pulse is sent by the ECM/PCM. The ECM/PCM receives a signal from the output shaft (countershaft) speed sensor, then processes the signal and transmits it to the gauge control module and other systems.
