GA-Net Bus Configuration
WARNING: This page is about a different variant/trim than selected.

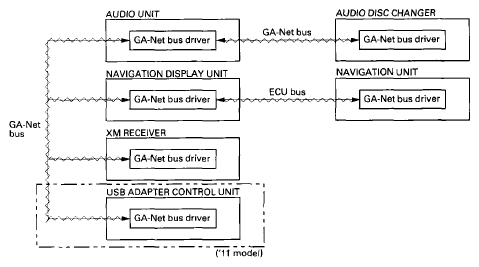

The GA-Net bus passes audio and navigation commands throughout the navigation and audio components. These commands include navigation audio/XM/USB selections by voice, and XM station, XM/USB and music title names. Because the entire bus is interconnected between components, an open or short in the GA-Net bus harness may cause any or all of these functions to become inoperative.
