Navigation Display Unit

WARNING: This page is about a different variant/trim than selected.

The display unit uses a liquid crystal display (LCD). The LCD is a 8-inch-diagonal, thin film transistor (TFT), strip type with 336, 960 picture elements. The color film and fluorescent light are laid out on the back of the liquid crystal film.

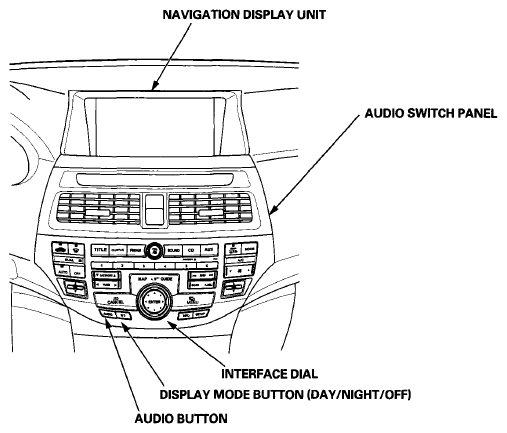

Fig 1: Identifying Navigation Display Unit, Audio Switch Panel, Audio Button And Display Mode Button

Courtesy of AMERICAN HONDA MOTOR CO., INC.
