Navigation Display Unit Removal/Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.
Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.

Remove the center display visor (see CENTER DISPLAY VISOR REMOVAL/INSTALLATION ).
Remove the self-tapping screws and bolts (A), then pull out the navigation display unit (B).

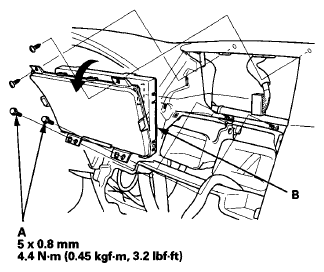

Fig 1: Self-Tapping Screws, Bolts And Navigation Display Unit With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connector (C), and remove the navigation display unit.
Install the unit in the reverse order of removal. Be careful not to drop the forward screw behind the dashboard.
