Interface Dial Removal/Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.
Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.

Remove the audio unit (see AUDIO UNIT REMOVAL/INSTALLATION ).
Remove the self-tapping screw and harness cover (A).

Fig 1: Identifying Self-Tapping Screw And Harness Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

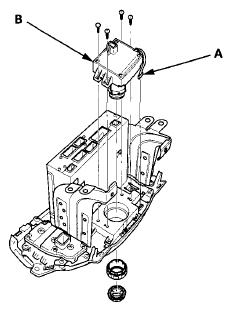

Remove the screws, and disconnect the interface dial 13P connector (A).
NOTE: If the hard buttons do not work, but the jog dial does, recheck the interface dial connector connection.

Fig 2: Identifying Interface Dial 13P Connector And Interface Dial
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the interface dial (B) from the audio switch panel (C).
NOTE: Apply pressure slowly and steady until the knob (D) and dial (E) pops off.
Install the dial in the reverse order of removal.
