TPMS Control Unit (TPMS) (View 278)
TPMS Control Unit (TPMS) (View 278)
GRY
Under Left Side of Dash
On Dashboard Wire Harness

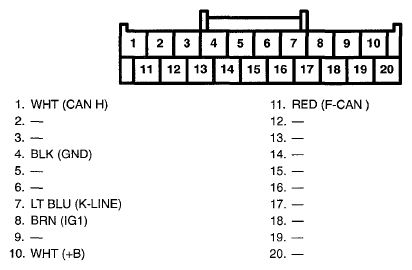

Fig 1: TPMS Control Unit (TPMS) Connector Terminal (View 278)
