Immobilizer-Keyless Control Unit (View 224)
Immobilizer-Keyless Control Unit (View 224)
WHT
In Steering Column Cover
On Dashboard Wire Harness

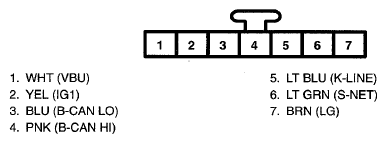

Fig 1: Immobilizer-Keyless Control Unit Connector Terminal (View 224)
