Left Sliding Door Remote Control Assembly Connector End View (View 393)

Left Sliding Door
On Left Sliding Door Wire Harness
Connector A (Power Sliding Doors)
- WHT

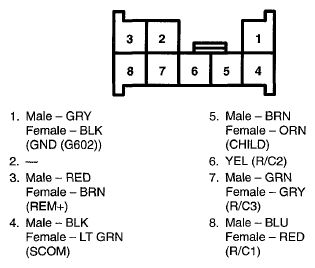

Fig 1: Left Sliding Door Remote Control Assembly Connector Terminals - Connector A (View 393)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B
- GRY

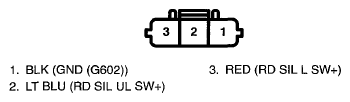

Fig 2: Left Sliding Door Remote Control Assembly Connector Terminals - Connector B (View 393)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C
- GRY
Fig 3: Left Sliding Door Remote Control Assembly Connector Terminals - Connector C (View 393)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
