Torque Sensor Replacement

Note these items during replacement:

• Do not allow dust, dirt, or other foreign materials to enter the gearbox.
• Do not try to disassemble the torque sensor assembly. If the torque sensor is faulty, replace it as an assembly.
• If the torque sensor is replaced, the EPS control unit must memorize the torque sensor neutral position (see MEMORIZING THE TORQUE SENSOR NEUTRAL POSITION ).

1. Center the steering rack within its stroke.
2. Remove the torque sensor assembly (A).

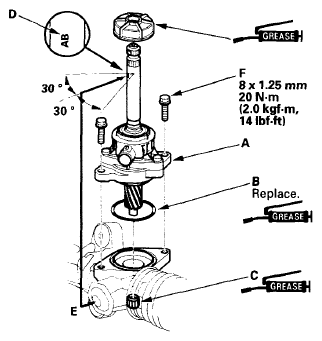

   Fig 1: O-Ring And Needle Bearing Grease Applying Area With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Coat the new O-ring (B) with multipurpose grease, and carefully fit it on the torque sensor housing.
4. Apply multipurpose grease to the needle bearing (C) in the gearbox housing.
5. Install the torque sensor assembly on the gearbox housing by engaging the gear.

   The alphabet stamping (for example "AB") (D) on the pinion shaft aligns with the rack guide screw (E) when the rack is in the straight ahead driving position.

   When installing the torque sensor assembly, make sure the "alphabet" stamping ("AB") is within the range shown.

6. Tighten the 8 mm flange bolts (F) to the specified torque.
