Thermostat Replacement

  1. Drain the engine coolant (see COOLANT REPLACEMENT  ).
  2. Remove the lower radiator hose and the thermostat cover, then remove the thermostat.
  3. Install the thermostat with a new rubber seal.
  4. Install the thermostat cover and the lower radiator hose.
  5. Refill the radiator with engine coolant, then bleed air from the cooling system (see step  8 ).
  6. Clean up any spilled engine coolant.

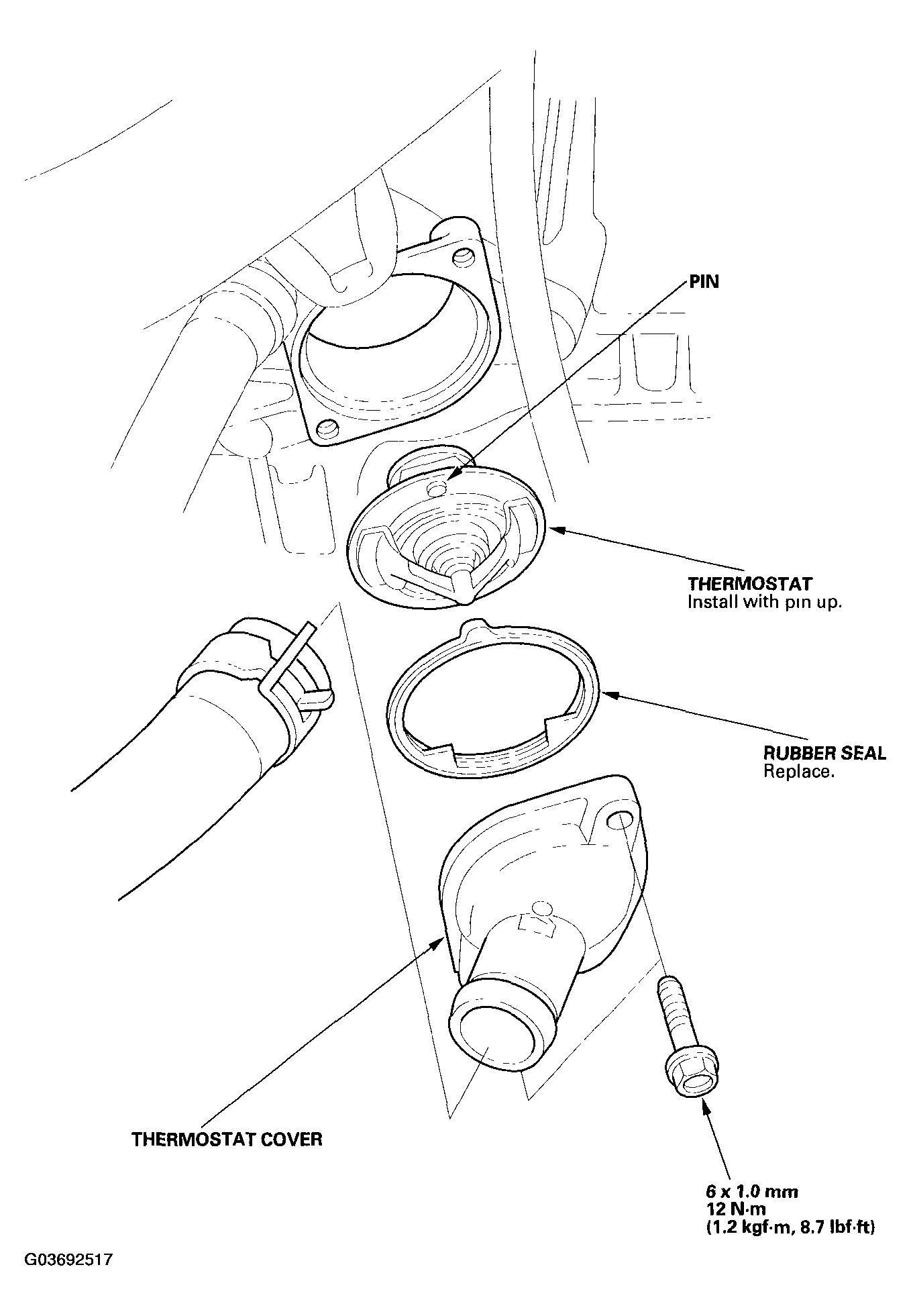

    Fig 1: Thermostat With Torque Specifications
    G03692517Courtesy of AMERICAN HONDA MOTOR CO., INC.
