C851 (View 232)
C851 (View 232)
BRN
Behind glove box
Connects dashboard wire harness A (right branch) to A/C wire harness

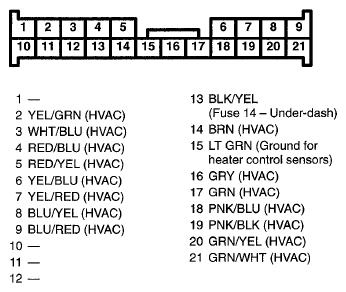

Fig 1: C851 Connector Terminal (View 232)
