C601 (View 199)
C601 (View 199)
GRY
Left D-pillar
Connects floor wire harness (left branch) to hatch wire harness

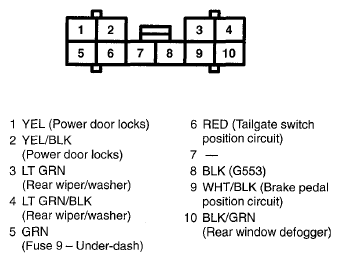

Fig 1: C601 Connector Terminal (View 199)
