C558 (View 212)
C558 (View 212)
GRY
Under center console
Connects floor wire harness (right branch) to VSA/fuel pump wire harness

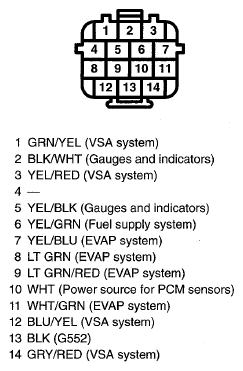

Fig 1: C558 Connector Terminal (View 212)
