C455 (View 234)

BLU
Under middle of dash
Connects ECM/PCM wire harness to floor wire harness (right branch)

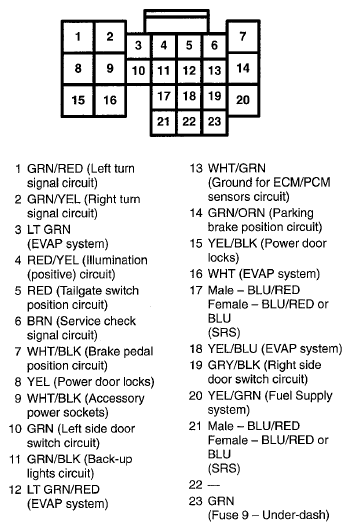

Fig 1: C455 Connector Terminal (View 234)
