Element SC, Standard
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Connector End Views
>>
C454 (View 218)
C454 (View 218)
BRN
Under middle of dash
Connects dashboard wire harness A (left branch) to ECM/PCM wire harness

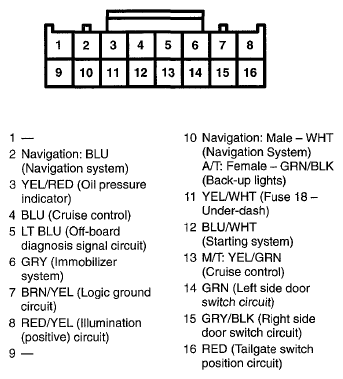

Fig 1: C454 Connector Terminal (View 218)
