C453 (View 209)
C453 (View 209)
WHT
Under middle of dash
Connects dashboard wire harness A (left branch) to ECM/PCM wire harness

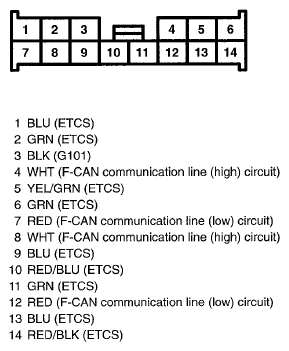

Fig 1: C453 Connector Terminal (View 209)
