C402 (View 217)
C402 (View 217)
YEL
Under middle of dash
Connects engine compartment wire harness (dashboard) to dashboard wire harness B

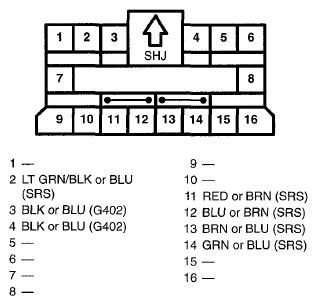

Fig 1: C402 Connector Terminal (View 217)
