C101 (View 221)
C101 (View 221)
GRY
Behind glove box
Connects engine wire harness to ECM/PCM wire harness

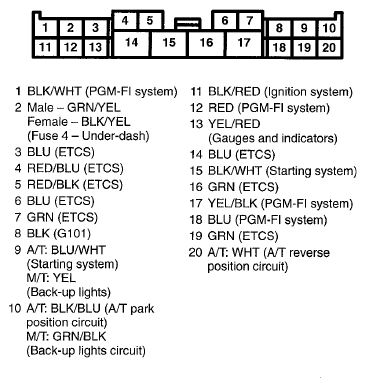

Fig 1: C101 Connector Terminal (View 221)
