Emblem/Sticker Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

When removing the emblems, take care not to scratch the body.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

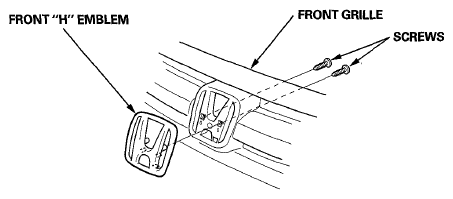

To remove the front "H" emblem, remove the front grille (see FRONT GRILLE REPLACEMENT ).
Clean the body surfaces where emblems are applied with a shop towel dampened with isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.
Apply the emblems where shown in the figure. Push on the emblems to make the adhesive stick securely.

Fig 1: Locating Emblems (Front)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

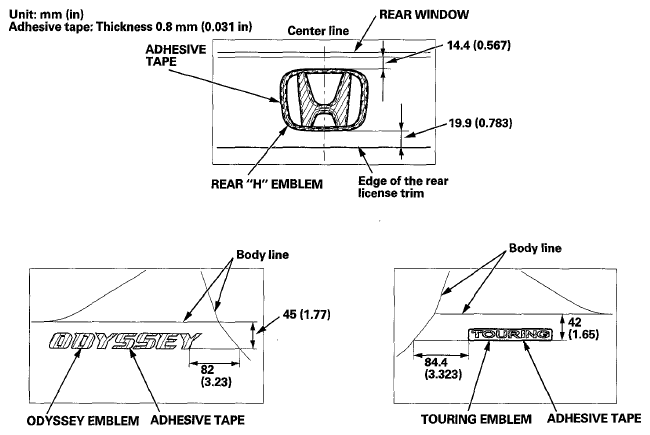

Fig 2: Locating Emblems (Rear)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
