Change Lever Assembly Disassembly/Reassembly

Prior to reassembling, clean all the parts in solvent, dry them, and apply lubricate to any contact surface.

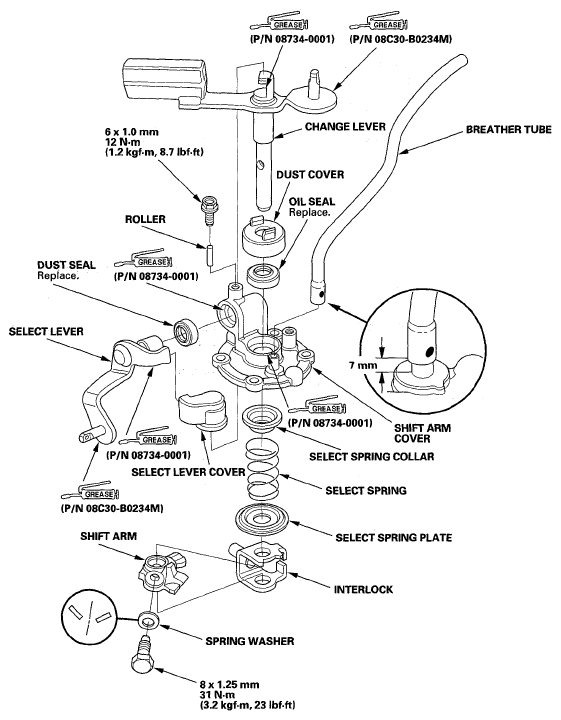

Fig 1: Change Lever Assembly Disassembly/Reassembly With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
