Brake Hose Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Before reassembling, check that all parts are free of dirt and other foreign particles.
Replace parts with new ones whenever specified to do so.
Do not spill brake fluid on the vehicle; it may damage the paint; if brake fluid gets on the paint, wash it off immediately with water.
To prevent the brake fluid from flowing, plug and cover the hose ends and joints with a shop towel or equivalent material.

Remove the wheel.

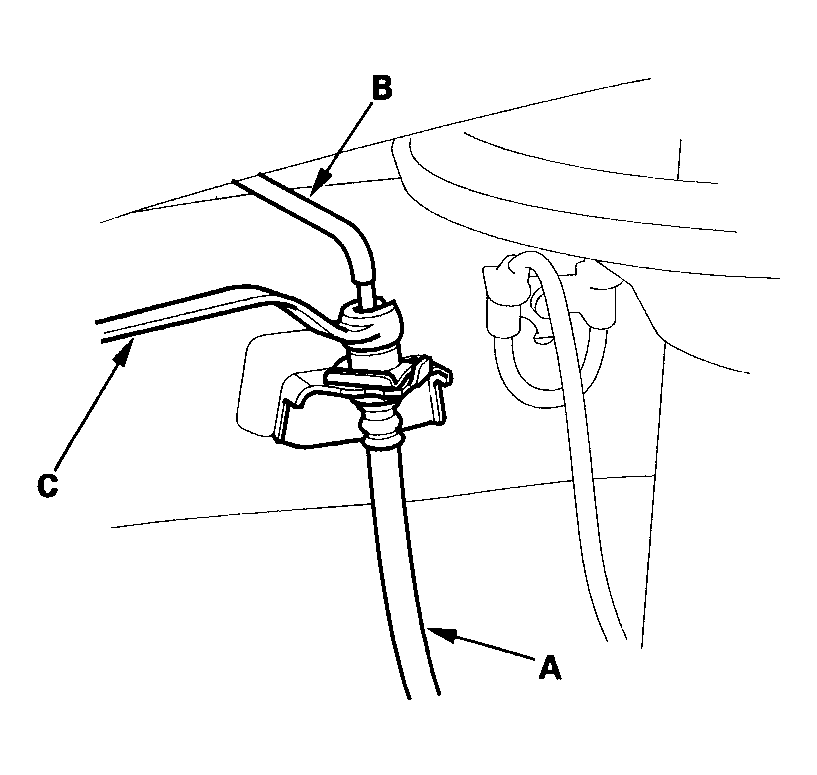

Replace the brake hose (A) if the hose is twisted, cracked, or leaking.

Fig 1: Disconnecting Brake Hose From Brake Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.

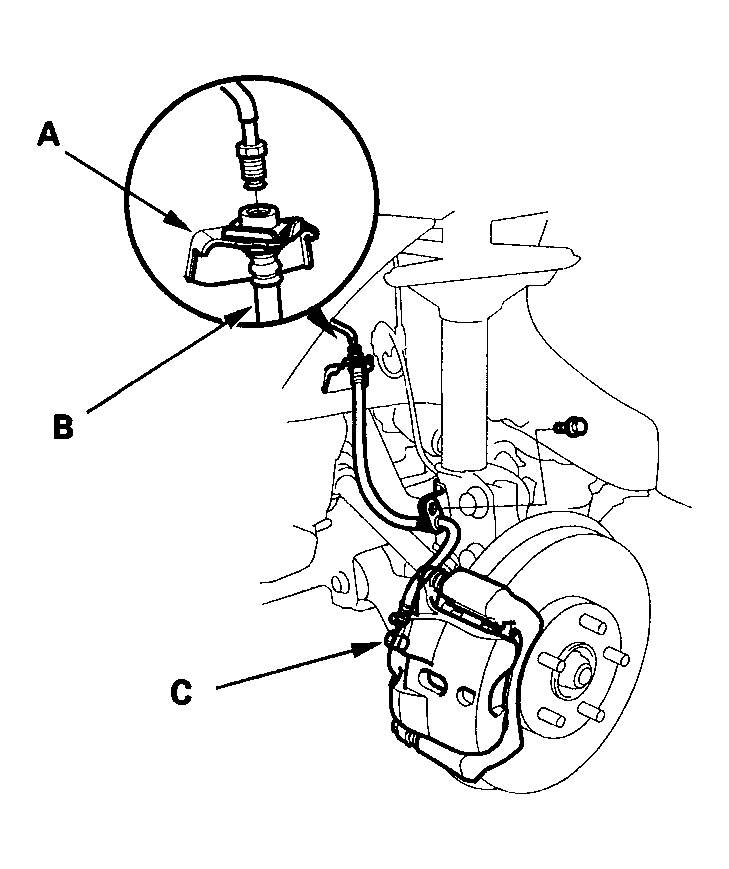

Remove and discard the brake hose clip (A) from the brake hose (B).

Fig 2: Removing Brake Hose Clip From Brake Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the banjo bolt (C), and disconnect the brake hose from the caliper.
Remove the brake hose from the damper.

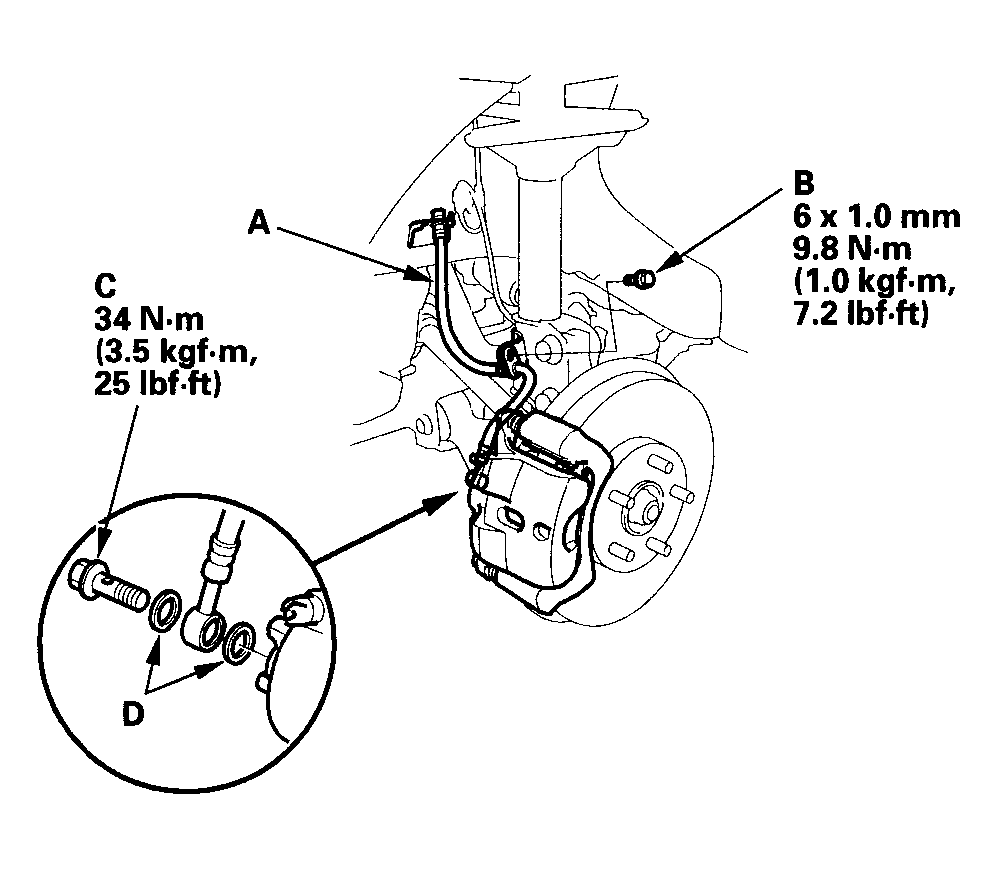

Install the brake hose (A) on the damper with flange bolt (B) first, then connect the brake hose to the caliper with the banjo bolt (C) and new sealing washers (D).

Fig 3: Installing Brake Hose On Damper With Flange Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

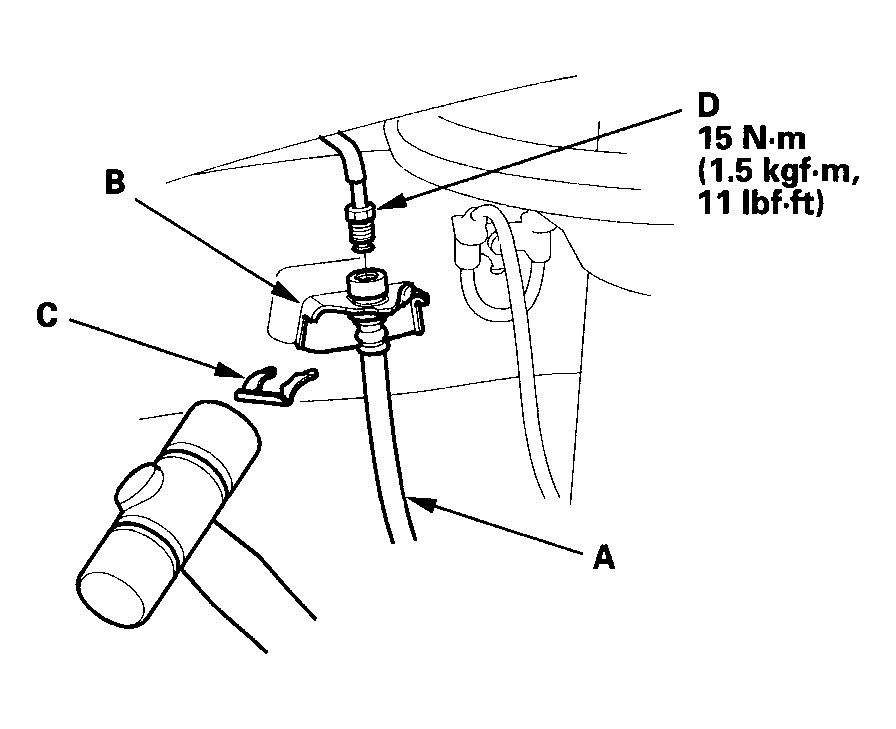

Install the brake hose (A) on the upper brake hose bracket (B) with a new brake hose clip (C).

Fig 4: Installing Brake Hose On Upper Brake Hose Bracket With New Brake Hose Clip With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the brake line (D) to the brake hose.
After installing the brake hose, bleed the brake system (see BRAKE SYSTEM BLEEDING ).
Do the following check:
- Check the brake hose and line joint for leaks, and tighten if necessary.
- Check the brake hoses for interference and twisting.
Clean the mating surfaces of the brake disc and the inside of the wheel, then install the wheel.
