System Structure: Wheels

TPMS will not work unless TPMS type wheels are installed on the vehicle. The original equipment wheels have these details:

• Aluminum wheel The wheels have a counterweights (A) on the opposite side of the spoke to balance the weight of the tire pressure sensor (B).
• Steel wheel The wheels have a "SJC" stamp (C) on the outside of the flange ribs.

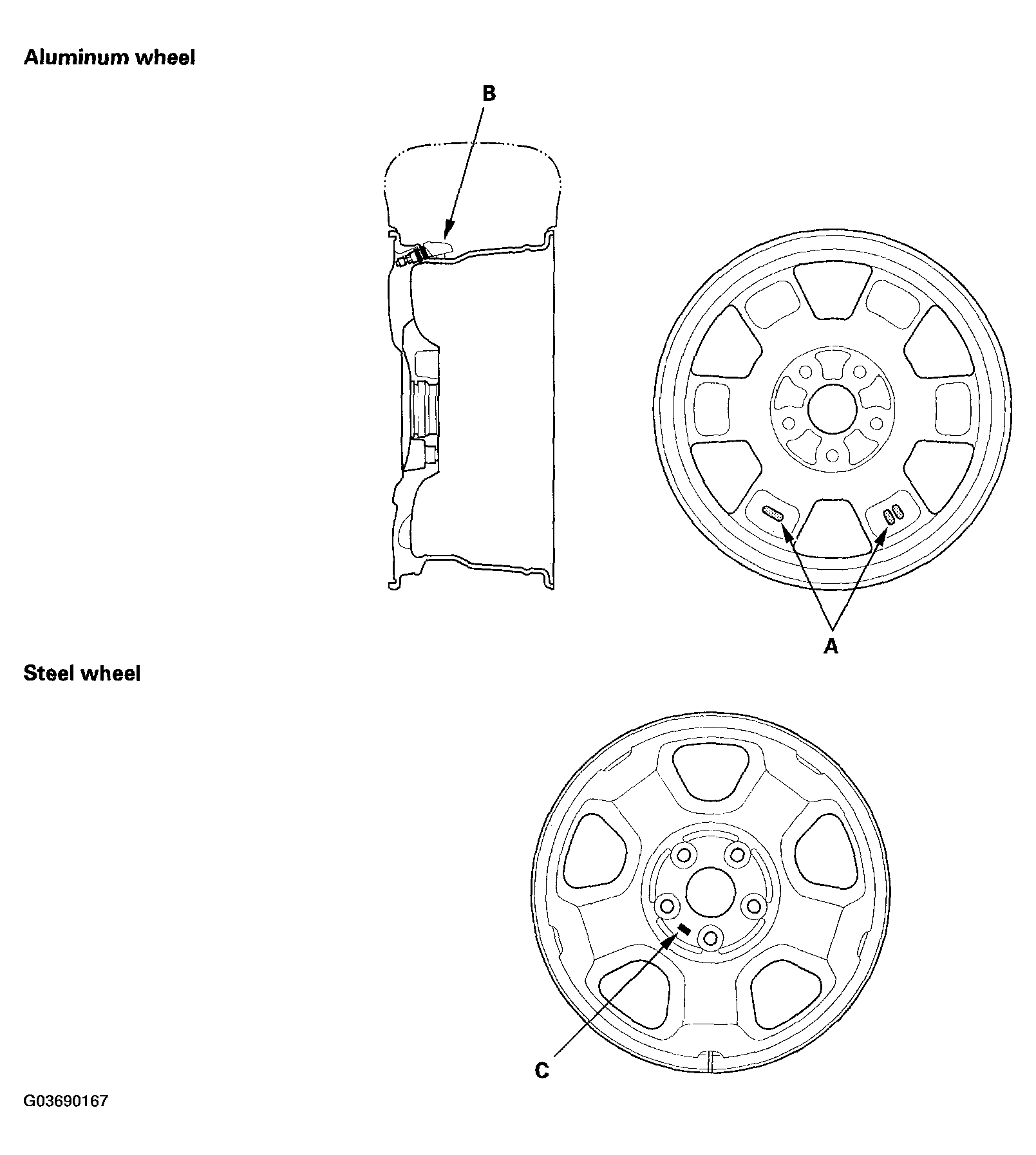

  Fig 1: Identifying Tire Pressure Sensor, "SJC" Stamp On Outside Of Flange Ribs And Counterweights On Opposite Side Of Spoke

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
