Home >> Honda >> 2007 >> Ridgeline RTL >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Circuit Diagram

Circuit Diagram

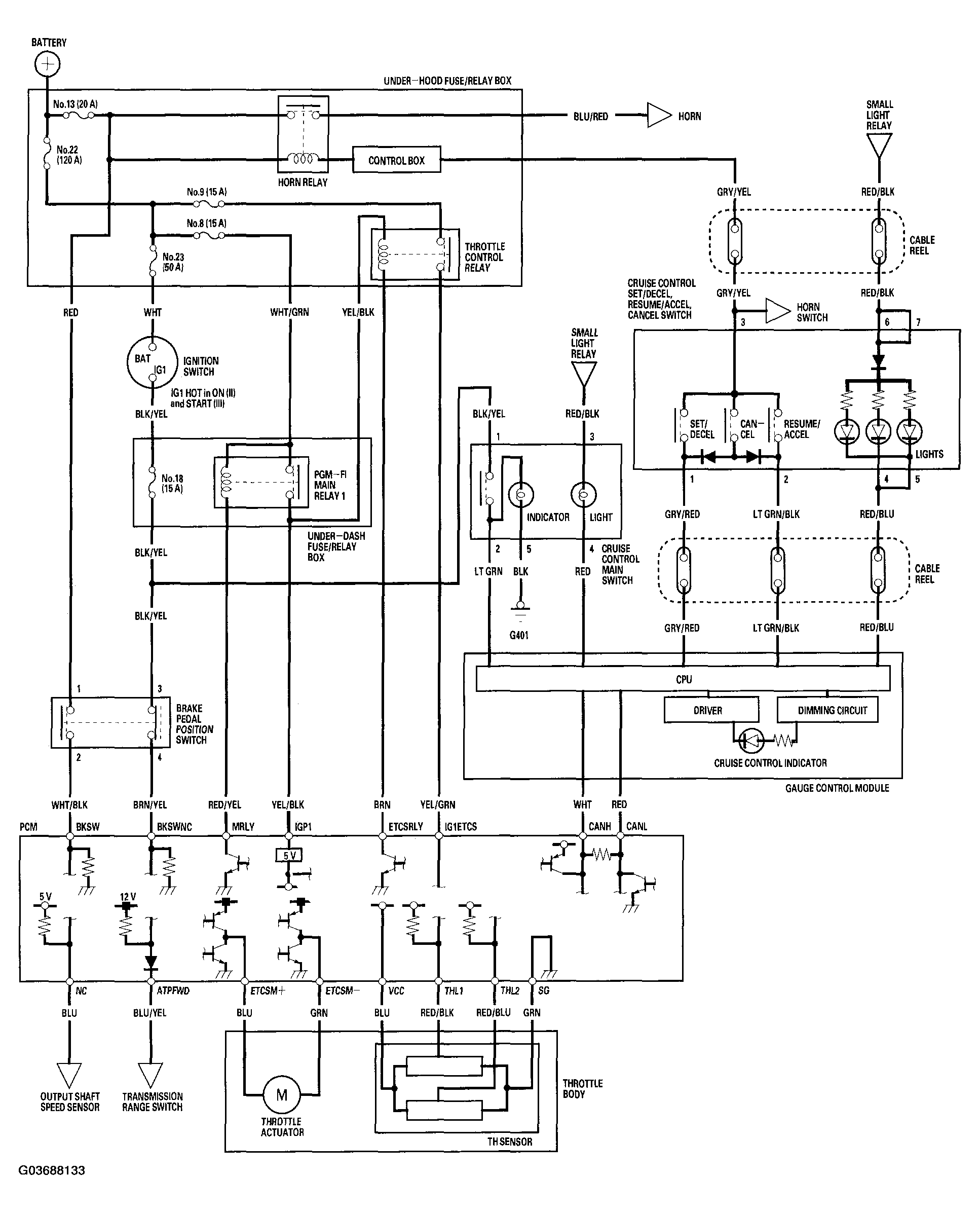

Fig 1: Identifying Cruise Control Circuit Diagram

G03688133

Courtesy of AMERICAN HONDA MOTOR CO., INC.
