In-car Temperature Sensor Replacement

  1. Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the self-tapping screws and the in-car temperature sensor (A) from the driver's dashboard lower cover (B).

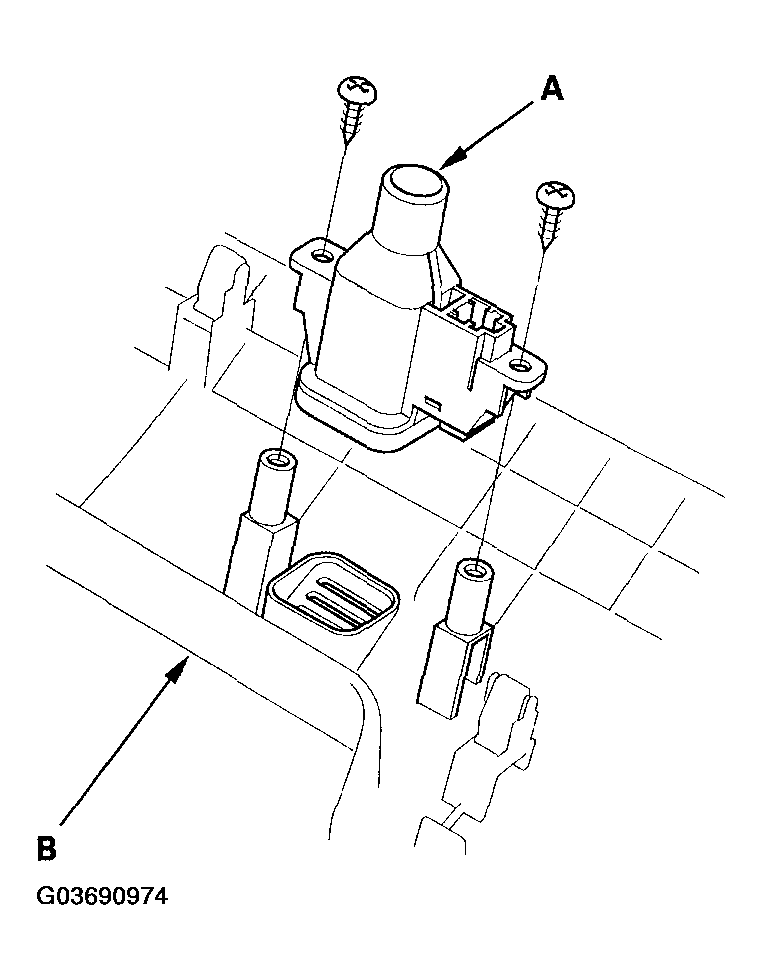

    Fig 1: Removing Self-Tapping Screws And In-Car Temperature Sensor From Driver's Dashboard Lower Cover
    G03690974Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
